技術特征

機座范圍	S/V18、S/V25	功率范圍	2.7~150.8kW
額定電壓	380V	額定轉速	3000、1500、1000、750
防護等級	IP55	冷卻方式	IC411、IC416
絕緣等級	F	工作方式	S1
安裝方式	B3、B5、B35	接線方式	Y

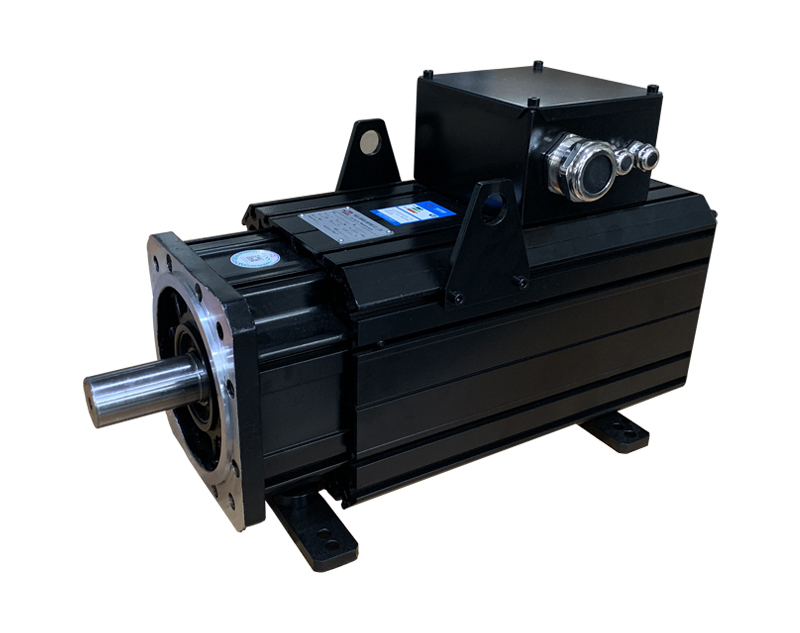

伺服電機

本系列電機外殼使用高強度的鋁型材外殼，外形和風道經過有限元溫度場分析最后優化確定，溫度梯度大，散熱好，電機結構合理，功率密度高，在堵轉和額定轉速范圍內可恒轉矩輸出，特殊的不對稱磁爐設計，使得低速轉矩脈動小；超高內稟矯頑力稀土永磁材料，抗去磁能力強；平衡精度高、高速運行平穩、噪音低、振動小。

運行條件

-15°C~+40°C

環境空氣溫度

≤90% (當溫度為25°c時)

環境空氣月平均最高相對濕度

≤1KM

海拔

電機型號	額定轉矩	最大轉矩	額定轉速	額定電流	額定功率	功率	反電勢	額定頻率	額定電壓
電機型號	N·m	N·m	rpm	A	kW	kW*1.15	V	Hz	V
V18-2N24F10	24	37.1	1000	4.7	2.5	2.8	368	50	345
V18-2N24F15	24	37.1	1500	6.8	3.7	4.3	368	75	345
V18-2N24F17	24	37.1	1700	7.8	4.2	4.9	361	85	345
V18-2N24F20	24	37.1	2000	9.3	5.0	5.7	360	100	345
V18-2N24F25	24	37.1	2500	11.5	6.2	7.2	368	125	345
V18-2N24F30	24	37.1	3000	14.5	7.5	8.6	368	150	345
V18-3N35F10	35	60.6	1000	6.8	3.7	4.3	367	50	345
V18-3N35F15	35	60.6	1500	10.1	5.5	6.3	367	75	345
V18-3N35F17	35	60.6	1700	11.4	6.2	7.1	353	85	345
V18-3N35F20	35	60.6	2000	13.4	7.3	8.4	367	100	345
V18-3N35F25	35	60.6	2500	16.7	9.1	10.5	367	125	345
V18-3N35F30	35	60.6	3000	20.6	11.0	12.7	367	150	345
V18-4N48F10	48	90.1	1000	9	5.0	5.7	360	50	345
V18-4N48F15	48	90.1	1500	13.6	7.5	8.6	360	75	345
V18-4N48F17	48	90.1	1700	15.4	8.5	9.8	362	85	345
V18-4N48F20	48	90.1	2000	18.1	10.0	11.5	360	100	345
V18-4N48F25	48	90.1	2500	22.7	12.5	14.4	368	125	345
V18-4N48F30	48	90.1	3000	26.9	15.0	17.3	360	150	362
V18-5N59F10	59	115.5	1000	11.2	6.2	7.1	367	50	345
V18-5N59F15	59	115.5	1500	16.6	9.2	10.6	367	75	345
V18-5N59F17	59	115.5	1700	18.9	10.5	12.1	346	85	345
V18-5N59F20	59	115.5	2000	22.1	12.3	14.1	367	100	345
V18-5N59F25	59	115.5	2500	27.8	15.4	17.7	357	125	345
V18-5N59F30	59	115.5	3000	32.2	18.5	21.3	367	150	363
V18-6N70F10	70	131.4	1000	13.1	7.3	8.4	375	50	345
V18-6N70F15	70	131.4	1500	19.8	11.0	12.7	367	75	345
V18-6N70F17	70	131.4	1700	22.6	12.5	14.4	375	85	345
V18-6N70F20	70	131.4	2000	26.5	14.7	16.9	342	100	345
V18-6N70F25	70	131.4	2500	33	18.3	21.0	367	125	345
V18-6N70F30	70	131.4	3000	39.8	22.0	25.3	367	150	345
V18-8N95F10	95	178	1000	18	10.0	11.5	359	50	345
V18-8N95F15	95	178	1500	26.9	15.0	17.2	359	75	345
V18-8N95F17	95	178	1700	30.5	17.0	19.5	370	85	345
V18-8N95F20	95	178	2000	36	20.0	23.0	370	100	345
V18-8N95F25	95	178	3000	44.9	25.0	28.7	353	125	345
V18-8N95F30	95	178	3000	53.8	30.0	34.5	359	150	345
V18-10N118F10	118	135.7	1000	22	12.3	14.2	367	50	345
V18-10N118F15	118	135.7	1500	33	18.5	21.3	367	75	345
V18-10N118F17	118	135.7	1700	37.5	21.0	24.1	370	85	345
V18-10N118F20	118	135.7	2000	44.2	24.7	28.4	353	100	345
V18-10N118F25	118	135.7	2500	55	30.8	35.4	374	125	345
V18-10N118F30	118	135.7	3000	64.4	37.0	42.5	367	150	345
V25-4N118F10	118	353	1000	21.5	12.3	14.2	366	50	343
V25-4N118F15	118	353	1500	32.2	18.5	17.8	366	75	343
V25-4N118F17	118	354	1700	36.6	21.0	24.1	363	85	343
V25-4N118F20	118	351	2000	43.1	24.7	28.4	366	100	343
V25-4N118F25	118	352	2500	53.7	30.8	35.4	356	125	343
V25-4N118F30	118	352	3000	62.7	37.0	42.6	366	150	343
V25-5N143F10	143	427	1000	26.1	15.0	17.2	362	50	343
V25-5N143F15	143	427	1500	39.1	22.5	25.9	362	75	343
V25-5N143F17	143	429	1700	44.4	25.5	29.3	367	85	343
V25-5N143F20	143	429	2000	52.2	30.0	34.5	367	100	343
V25-5N143F25	143	429	2500	65.3	37.5	43.1	349	125	343
V25-5N143F30	143	429	3000	76.2	45.0	51.7	362	150	343
V25-6N175F10	175	537	1000	31.8	18.3	21.0	366	50	343
V25-6N175F15	175	537	1500	47.8	27.5	31.6	366	75	343
V25-6N175F17	175	526	1700	54.1	31.1	35.8	363	85	343
V25-6N175F20	175	530	2000	63.6	36.6	42.0	366	100	343
V25-6N175F25	175	530	2500	79.7	45.8	52.7	343	125	343
V25-6N175F30	175	530	3000	92.5	55.0	63.2	366	150	343
V25-8N238F10	238	617	1000	41.9	25.0	28.8	366	50	343
V25-8N238F15	238	617	1500	62.8	37.5	43.1	366	75	343
V25-8N238F17	238	610	1800	71.1	42.5	48.9	347	85	343
V25-8N238F20	238	609	2000	83.7	50.0	57.5	366	100	343
V25-8N238F25	238	609	2500	104.7	62.5	71.9	355	125	343
V25-8N238F30	238	609	3000	122.1	75.0	86.2	366	150	343
V25-10N286F10	286	689	1000	52.2	30.0	34.5	369	50	343
V25-10N286F15	286	689	1500	78.2	45.0	51.7	369	75	343
V25-10N286F17	286	680	1800	88.7	51.0	58.7	351	85	343
V25-10N286F20	286	683	2000	104.4	60.0	69.0	369	100	343
V25-10N286F25	286	683	2500	130.4	75.0	86.2	369	125	343
V25-10N286F30	286	683	3000	152.5	90.0	103.5	354	150	343
V25-11N350F10	350	782	1000	61.8	36.6	42.0	366	50	343
V25-11N350F15	350	782	1500	92.9	55.0	63.2	366	75	343
V25-11N350F17	350	781	1800	105.4	62.4	71.8	359	85	343
V25-11N350F20	350	778	2000	123.8	73.3	84.3	358	100	343
V25-11N350F25	350	778	2500	154.8	91.7	105.5	366	125	343
V25-11N350F30	350	778	3000	181.6	110.0	126.5	366	150	343

電機型號	額定轉矩	最大轉矩	額定轉速	最大轉速	額定電流	額定功率	反電勢	額定頻率	額定電壓
電機型號	N·m	N·m	rpm	rpm	A	kW	V	Hz	V
S18-2N35F7.5	35	72	750	1200	5.1	2.7	323	50	345
S18-2N35F10	35	72	1000	1450	7.0	3.7	323	67	345
S18-2N35F15	35	72	1500	1950	10.4	5.5	323	100	345
S18-2N35F17	35	73	1700	2150	11.9	6.3	329	113	345
S18-2N35F20	35	71	2000	2450	13.8	7.3	323	133	345
S18-2N35F25	35	71	2500	3000	17.7	9.2	323	167	345
S18-2N35F30	35	71	3000	3000	21.2	11.0	323	200	345
S18-3N55F7.5	55	114	750	1200	8.0	4.3	328	50	345
S18-3N55F10	55	114	1000	1450	11.1	5.8	328	67	345
S18-3N55F15	55	114	1500	1950	16.1	8.7	328	100	345
S18-3N55F17	55	112	1700	2150	18.0	9.8	329	113	345
S18-3N55F20	55	112	2000	2450	21.3	11.5	322	133	345
S18-3N55F25	55	112	2500	3000	27.7	14.4	322	167	345
S18-3N55F30	55	112	3000	3000	33.2	17.3	338	200	345
S18-4N75F7.5	75	158	750	1200	10.8	5.9	322	50	345
S18-4N75F10	75	158	1000	1450	14.8	7.9	322	67	345
S18-4N75F15	75	158	1500	1950	21.7	11.8	322	100	345
S18-4N75F17	75	157	1700	2150	24.4	13.4	329	113	345
S18-4N75F20	75	155	2000	2450	28.7	15.7	322	133	345
S18-4N75F25	75	155	2500	3000	36.5	19.7	322	167	345
S18-4N75F30	75	155	3000	3000	43.7	23.5	354	200	345
S18-5N95F7.5	95	184	750	1200	13.7	7.5	322	50	345
S18-5N95F10	95	184	1000	1450	17.2	9.4	322	67	345
S18-5N95F15	95	184	1500	1950	25.8	14.1	322	100	345
S18-5N95F17	95	196	1700	2150	31.1	16.9	319	113	345
S18-5N95F20	95	195	2000	2450	36.6	20.0	322	133	345
S18-5N95F25	95	195	2500	3000	45.9	25.0	335	167	345
S18-5N95F30	95	195	3000	3000	53.6	29.9	362	200	345
S18-6N115F7.5	115	235	750.0	1200	16.2	9.0	337	50	345
S18-6N115F10	115	235	1000	1450	22.1	12.0	337	67	345
S18-6N115F15	115	235	1500	1950	32.5	18.0	337	100	345
S18-6N115F17	115	236	1800	2250	37.1	20.5	328	113	345
S18-6N115F20	115	237	2000	2450	43.1	24.0	354	133	345
S18-6N115F25	115	237	2500	3000	44.1	30.1	322	167	345
S18-6N115F30	115	237	3000	3000	66.5	36.2	314	200	345
S18-7N135F7.5	135	278	750	1200	19.1	10.6	337	50	345
S18-7N135F10	135	278	1000	1450	26.1	14.1	337	67	345
S18-7N135F15	135	278	1500	1950	38.2	21.2	337	100	345
S18-7N135F17	135	276	1700	2150	44.2	24.1	318	113	345
S18-7N135F20	135	276	2000	2450	50.6	28.3	337	133	345
S18-7N135F25	135	276	2000	2450	64.4	35.3	328	167	345
S18-7N135F30	135	276	2000	2450	77.4	42.4	327	200	345
S18-8N155F7.5	155	310	750	1200	22.2	12.2	321	50	345
S18-8N155F10	155	310	1000	1450	29.6	16.2	321	67	345
S18-8N155F15	155	310	1500	1950	44.5	24.4	321	100	345
S18-8N155F17	155	321	1700	2150	49.8	27.6	327	113	345
S18-8N155F20	155	315	2000	2450	59.0	32.5	321	133	345
S18-8N155F25	155	315	3000	3000	73.8	40.6	321	167	345
S18-8N155F30	155	315	3000	3000	88.5	48.7	321	200	345
S18-9N180F7.5	180	360	750	1200	25.6	14.1	337	50	345
S18-9N180F10	180	360	1000	1450	34.3	18.8	337	67	345
S18-9N180F15	180	360	1500	1950	51.4	28.3	325	100	345
S18-9N180F17	180	360	1700	2150	57.8	32.0	327	113	345
S18-9N180F20	180	360	2000	2450	67.3	37.7	337	133	345
S18-9N180F25	180	360	3000	3000	85.5	47.1	361	167	345
S18-9N180F30	180	360	3000	3000	102.6	56.5	361	200	345
S25-4N180F7.5	180	353	750	1200	25.9	14.1	335	50	345
S25-4N180F10	180	353	1000	1450	34.5	18.9	335	67	345
S25-4N180F15	180	353	1500	1950	52.0	28.3	327	100	343
S25-4N180F17	180	354	1700	2150	60.0	32.0	314	113	343
S25-4N180F20	180	351	2000	2450	68.8	37.7	335	133	343
S25-4N180F25	180	351	2500	3000	85.5	47.1	335	167	343
S25-4N180F30	180	351	3000	3000	102.8	56.6	352	200	343
S25-5N220F7.5	220	351	750	1200	32.1	17.3	314	50	343
S25-5N220F10	220	351	1000	1450	41.5	23.0	314	67	343
S25-5N220F15	220	427	1500	1950	64.2	34.5	314	100	343
S25-5N220F17	220	436	1700	2150	72.1	39.1	320	113	343
S25-5N220F20	220	429	2000	2450	83.3	46.0	335	133	343
S25-5N220F25	220	429	2500	3000	103.9	57.5	366	167	343
S25-5N220F30	220	429	3000	3000	124.7	69.0	379	200	343
S25-6N270F7.5	270	537	750	1200	38.9	21.2	326	50	343
S25-6N270F10	270	537	1000	1450	51.4	28.3	326	67	343
S25-6N270F15	270	537	1500	1950	77.8	42.4	320	100	343
S25-6N270F17	270	526	1700	2150	88.0	48.0	320	113	343
S25-6N270F20	270	530	2000	2450	102.6	56.5	326	133	343
S25-6N270F25	270	530	2500	3000	127.7	70.6	344	167	343
S25-6N270F30	270	530	3000	3000	153.4	84.8	338	200	343
S25-7N310F7.5	310	617	750	1200	43.9	24.3	322	50	343
S25-7N310F10	310	617	1000	1450	58.8	32.5	322	67	343
S25-7N310F10	310	617	1500	1950	87.9	32.5	329	100	343
S25-7N310F17	310	610	1800	2250	100.3	55.2	323	113	343
S25-7N310F20	310	609	2000	2450	118.5	65.0	322	133	343
S25-7N310F25	310	609	2500	3000	145.6	81.2	358	133	343
S25-7N310F30	310	609	3000	3000	174.9	97.5	322	200	343
S25-8N350F7.5	350	689	750	1200	49.7	27.5	334	50	343
S25-8N350F10	350	689	1000	1450	65.7	36.6	334	67	343
S25-8N350F15	350	689	1500	1950	99.4	55.0	326	100	343
S25-8N350F17	350	680	1800	2250	115.2	62.3	313	113	343
S25-8N350F20	350	683	2000	2450	131.1	73.3	334	133	343
S25-8N350F25	350	683	2500	3000	164.6	91.6	334	167	343
S25-8N350F30	350	683	3000	3000	197.5	110.0	350	200	343
S25-9N400F7.5	400	782	750	1200	58.4	31.4	319	50	343
S25-9N400F10	400	782	1000	1450	75.0	41.9	319	67	343
S25-9N400F15	400	782	1500	1950	116.8	62.8	310	100	343
S25-9N400F17	400	781	1800	2250	130.0	71.2	320	113	343
S25-9N400F20	400	778	2000	2450	149.2	83.8	339	133	343
S25-9N400F25	400	778	2500	3000	187.4	104.7	330	133	343
S25-9N400F30	400	778	3000	3000	225.0	125.7	339	200	343
S25-10N440F7.5	440	861	750	1200	65.8	34.6	323	50	343
S25-10N440F10	440	861	1000	1450	82.3	46.0	323	67	343
S25-10N440F15	440	861	1500	1950	131.2	69.0	317	100	343
S25-10N440F17	440	858	1800	2250	149.0	78.3	317	113	343
S25-10N440F20	440	850	2000	2450	172.3	92.0	323	133	343
S25-10N440F25	440	850	2500	3000	205.7	115.0	341	167	343
S25-10N440F30	440	850	3000	3000	246.9	138.0	338	200	343
S25-11N480F7.5	480	935	750	1200	69.8	37.7	328	50	343
S25-11N480F10	480	935	1000	1450	90.8	50.3	328	67	343
S25-11N480F15	480	935	1500	1950	139.8	75.5	328	100	343
S25-11N480F17	480	936	1800	2250	158.9	85.4	325	113	343
S25-11N480F20	480	929	2000	2450	185.9	100.5	328	113	343
S25-11N480F25	480	929	2000	2450	224.5	125.6	342	133	343
S25-11N480F30	480	929	3000	3000	269.6	150.8	328	200	343
